Configurable, Local, Reliable Grab Sampling Panels for Gas and Liquid Service





We offer fully configurable, locally built and supported, reliable grab sampling assemblies. Every configuration has advanced features to help you safely capture samples of liquid or gas from your process lines.

Whether you are looking for a closed-loop sampling into pressure-rated sample cylinders or you want to collect process fluid into lower-cost glass laboratory bottles for analysis, our sampling panel options are safe, intuitive, easy to maintain and can be ordered as a single part number.



Grab Sampling Local Assembly and Support

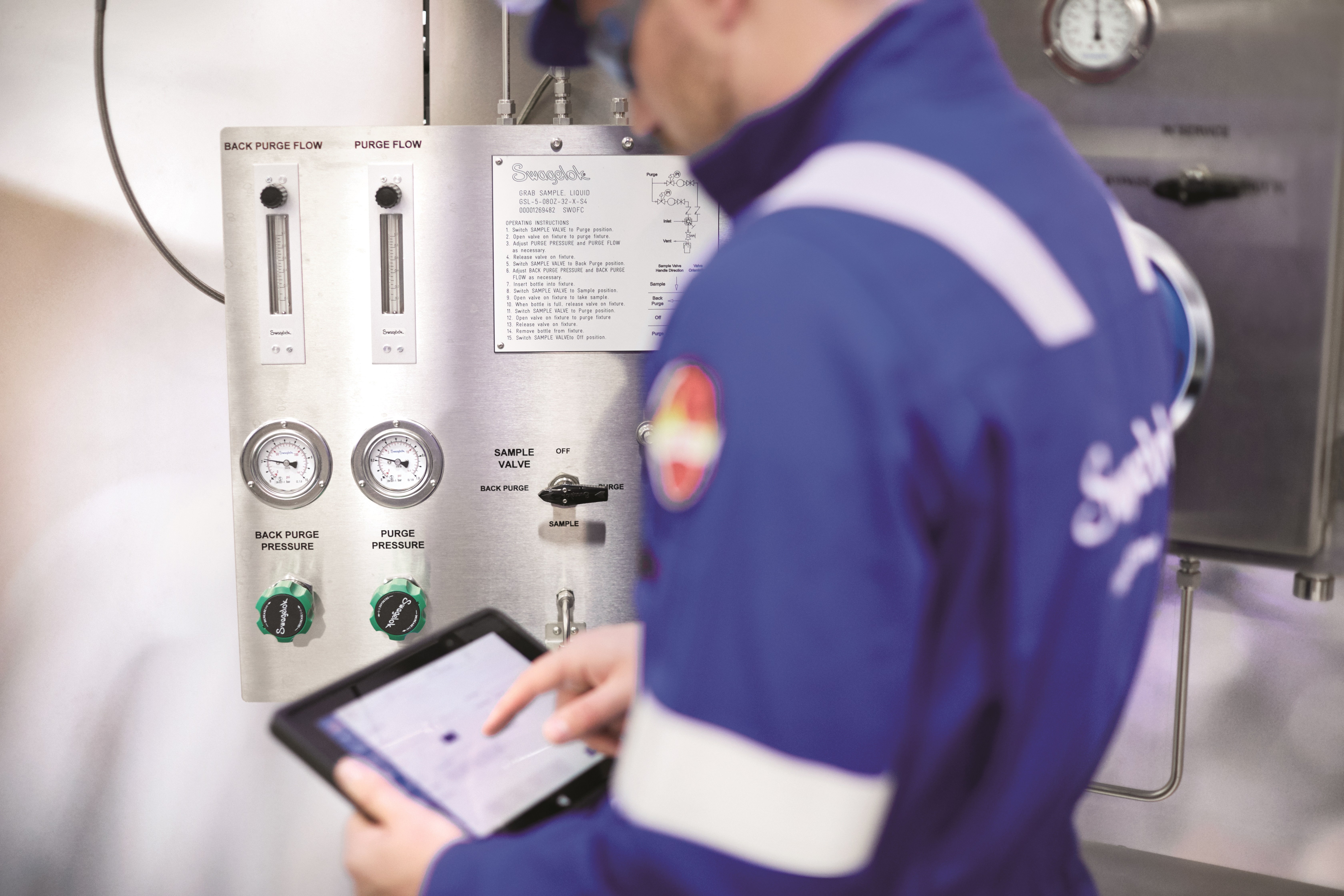

Photography-Field Engineer83

At Swagelok Manchester our team will work closely with you to determine the type of panel and the proper configuration to meet your sampling system needs. Your grab sampling will be built to your specifications locally by experienced fluid systems technicians.

All Swagelok grab sampling assemblies are fully tested and are backed by the Swagelok Limited Lifetime Warranty.



Swagelok Grab Sampling Panels
Grab Sample Module (GSM)

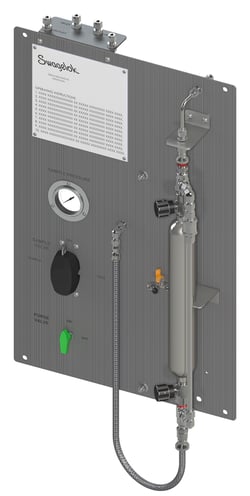

Illustration and Drawing-Grab Sample Panel-1

The Swagelok® grab sample module (GSM) is a closed-looped sampling system that pulls from a positive-pressure process and returns back to the process at a lower pressure location using for example upstream of a pump, by using differential pressure to drive the fluid through the system. Samples are deposited into durable, pressure-rated metal grab sampling cylinders (GSC) that prevent the sample from escaping and protecting operators.

Click here to view more information about the GSM


Grab Sample Liquid Systems (GSL)

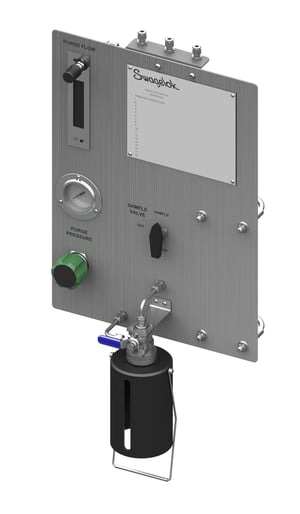

Illustration and Drawing-Grab Sample Panel-3

The Swagelok® grab sample liquid (GSL) is a liquid-only sampling system used for drawing fluid into a non-pressure-containing bottle with a self-sealing septum cap, used in applications where the process fluid is not at risk of fractionating when stored at atmospheric pressure.

Click here to view more information about the GSL


Grab Sample Valve



Swagelok Grab Sample Valve-10

By adding  a Swagelok® grab sampling valve to your fluid system you will over come the safety, maintenance and quality challenges that are associated with standard bottle sampling.

Some of the features of the Grad Sampling Valve are, easy needle replacement, improved needle design, interchangeable shrouds, Elastomer-free design and spring-return handle

Download Grab Sampling Systems Application Guide



Swagelok® Ammonia Sampler

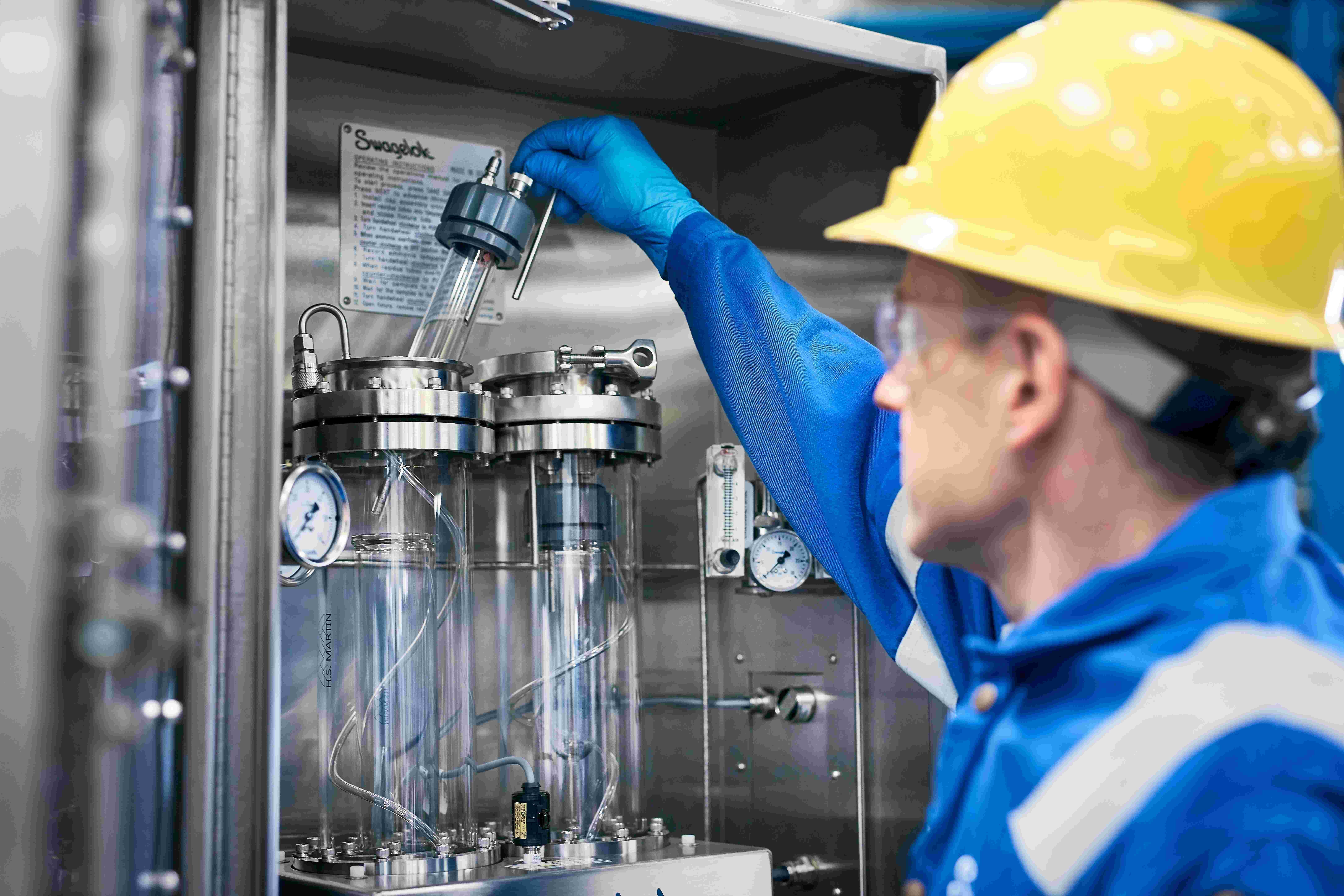

The Swagelok® ammonia sampler makes anhydrous ammonia sampling safer by minimising exposure to liquid and vaporised ammonia. It also introduces consistency into the sampling operation significantly expedites the sampling process and eliminates the transportation of ammonia samples within the facility.

Photo-AmmoniaSampler-002 (1)

Anhydrous ammonia is used in the production of fertilisers, plastics, textiles, petroleum, and more. To avoid ammonia stress corrosion cracking in storage tanks and product quality concerns, the product must be regularly sampled to verify a water content of 0.2% to 0.5%.

Swagelok’s closed-loop ammonia sampling unit is designed to remove the challenges inherent to traditional ammonia sample collection methods. The Swagelok ammonia sampler minimises hazardous exposure to the operator, introduces consistency into the ammonia sampling operation for more accurate results, expedites the gathering of results and adheres to the highest quality and safety standards.

Each sampler will be built to your specifications by experienced fluid systems technicians. All Swagelok ammonia samplers are fully tested and are backed by the Swagelok Limited Lifetime Warranty.

See Swagelok Ammonia Sampler Features and Benefits



Download more information on The Swagelok ammonia sampler



Swagelok Manchester can help you with your all your grab sampling needs and work closely with you to determine the type of panel and the proper configuration to meet your needs. Get in touch with a member of our Technical Team today!
